Relay Omron - Omron relay 24V DC (4C)

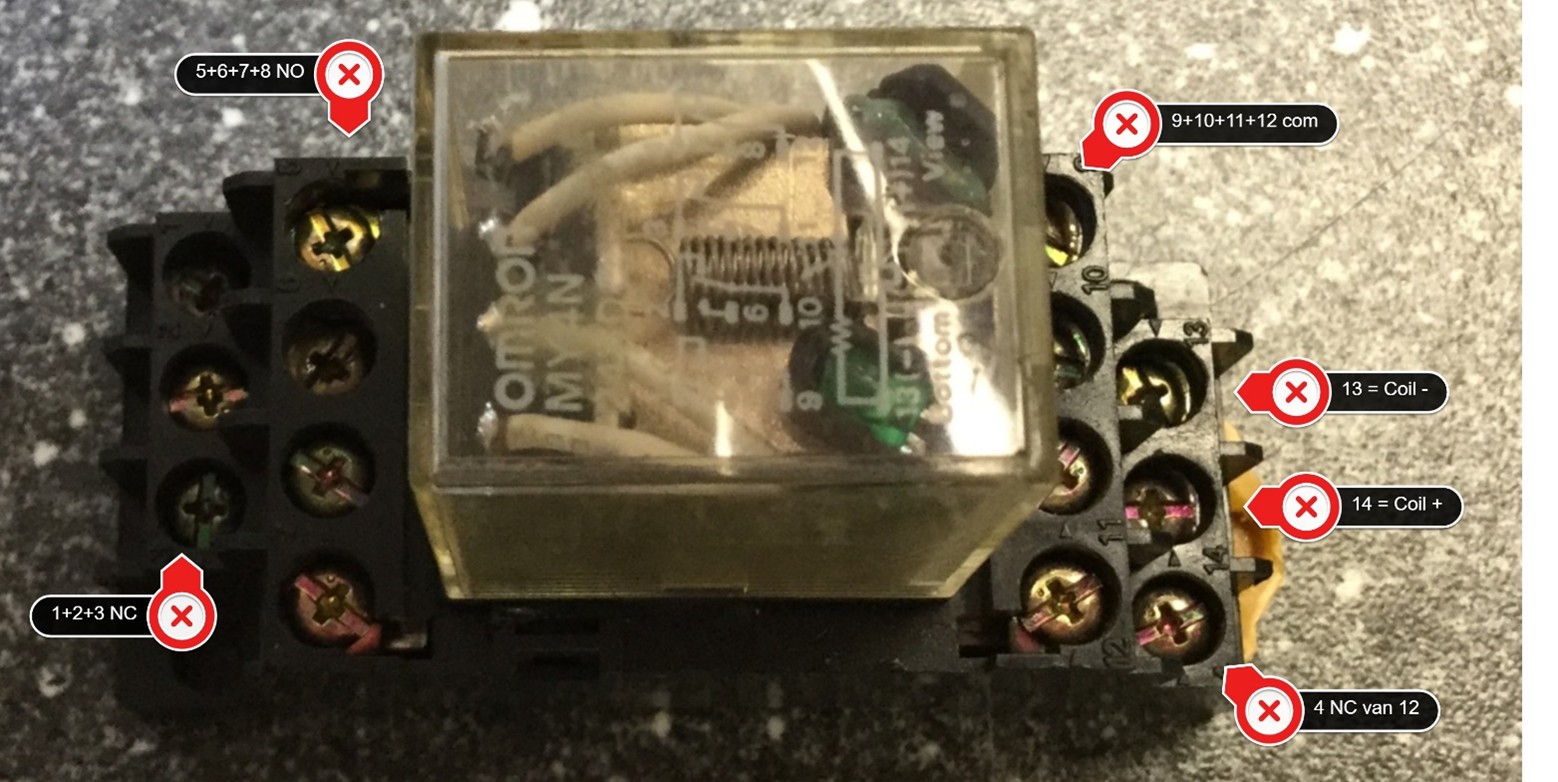

• To use the built-in LED: 13 = - and 14 = +
• Pins 9 + 10 + 11 + 12 = common
• Pin 4 (front row beside the coil pins 13 and 14) = NC of common pin 12
• Pins 1 + 2 + 3 = NC of common pins 9 + 10 + 11
• Pins 5 + 6 + 7 + 8 = NO

 

Coil voltage:	24 V DC ⓓ
Changeover contacts:	4 ⓓ
In stock:	12 ⓘApproximately, not all usage is accurately recorded.
Location:	Relay container box ⓓ
Price range:	Cheap (between €0.50 and €2) ⓘThe price range is an estimate, based on commercial pricing on the date the part was added. ⓓ
In categories:	Relays (24V DC) Relays
